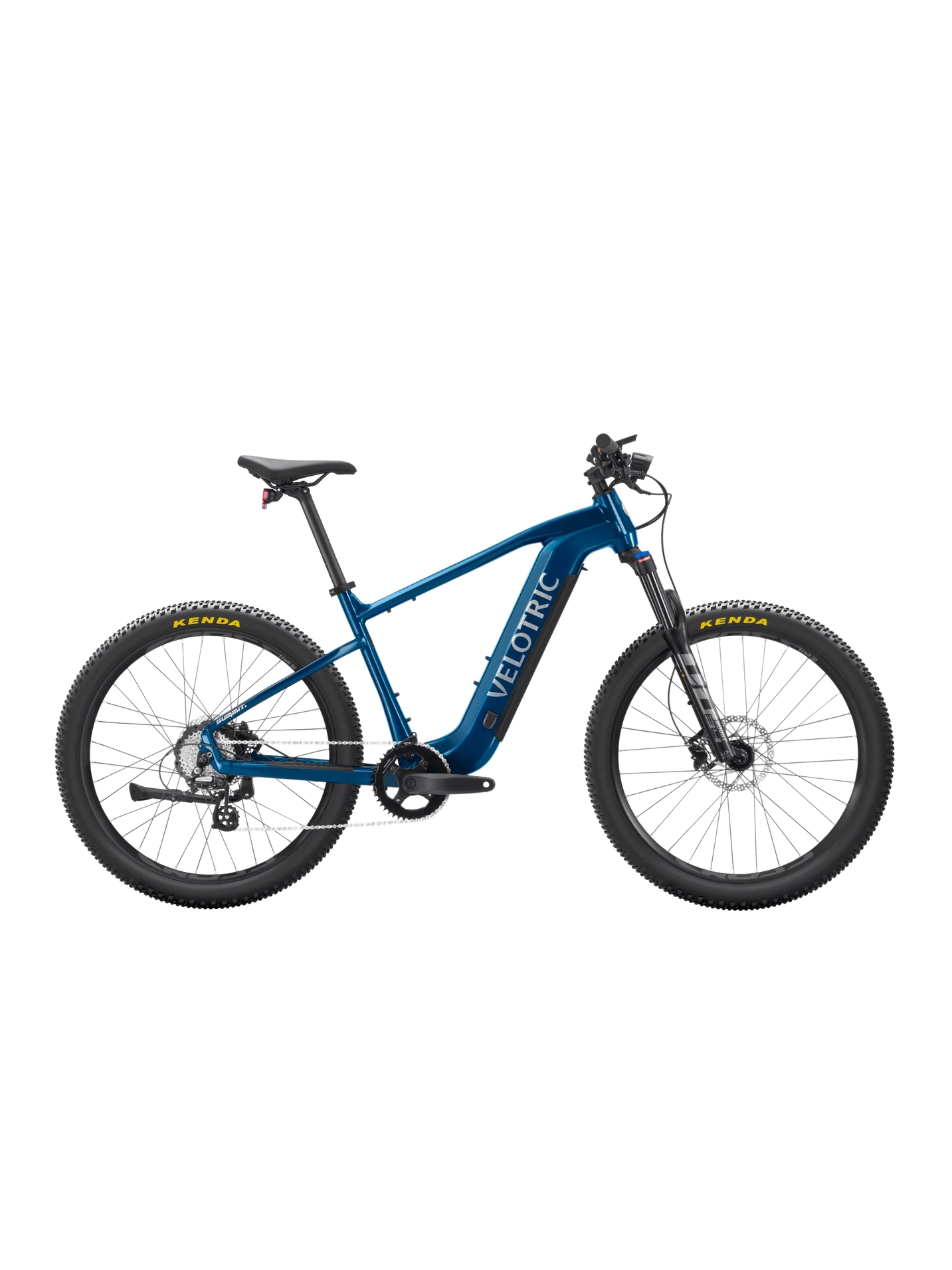

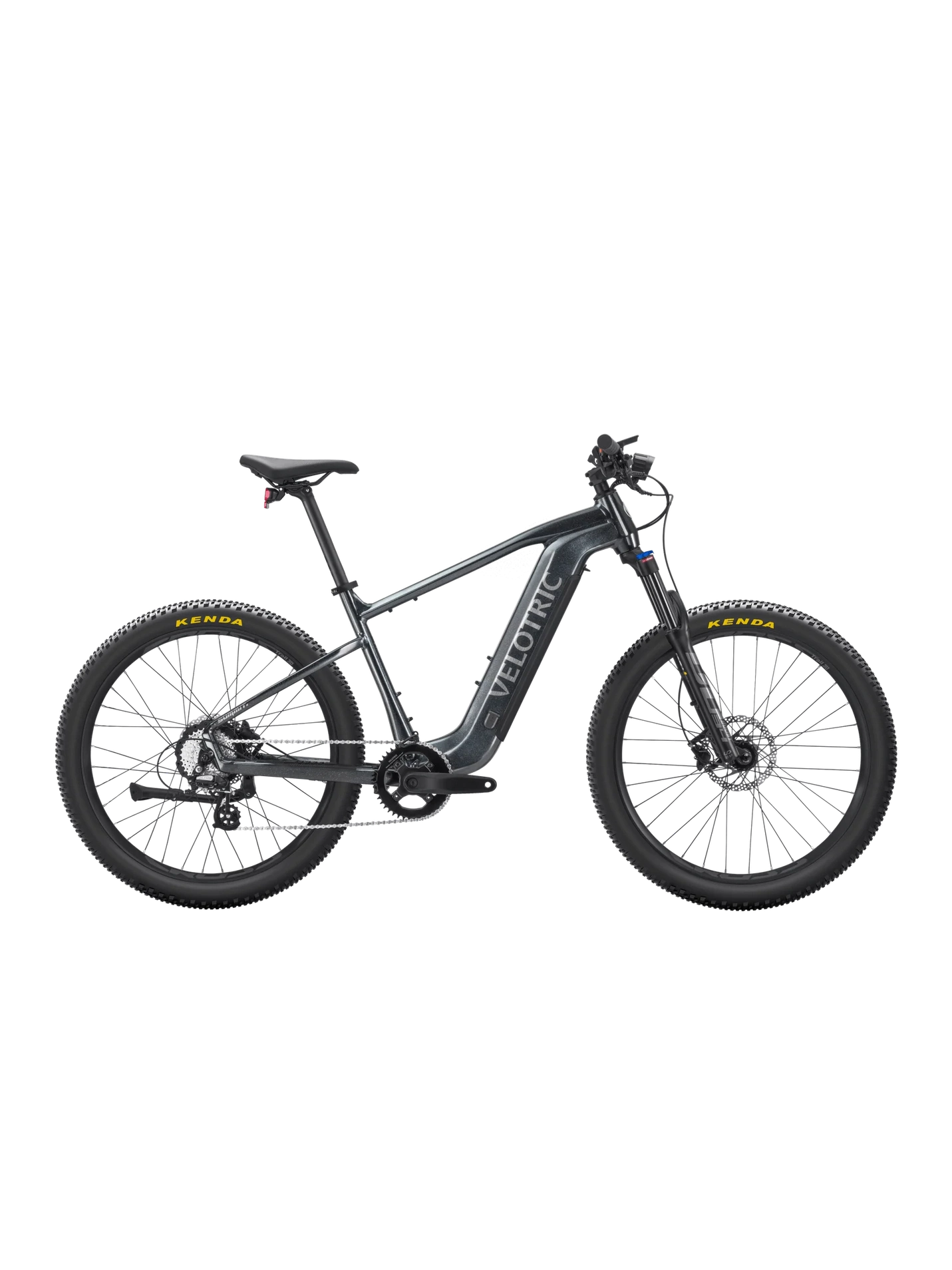

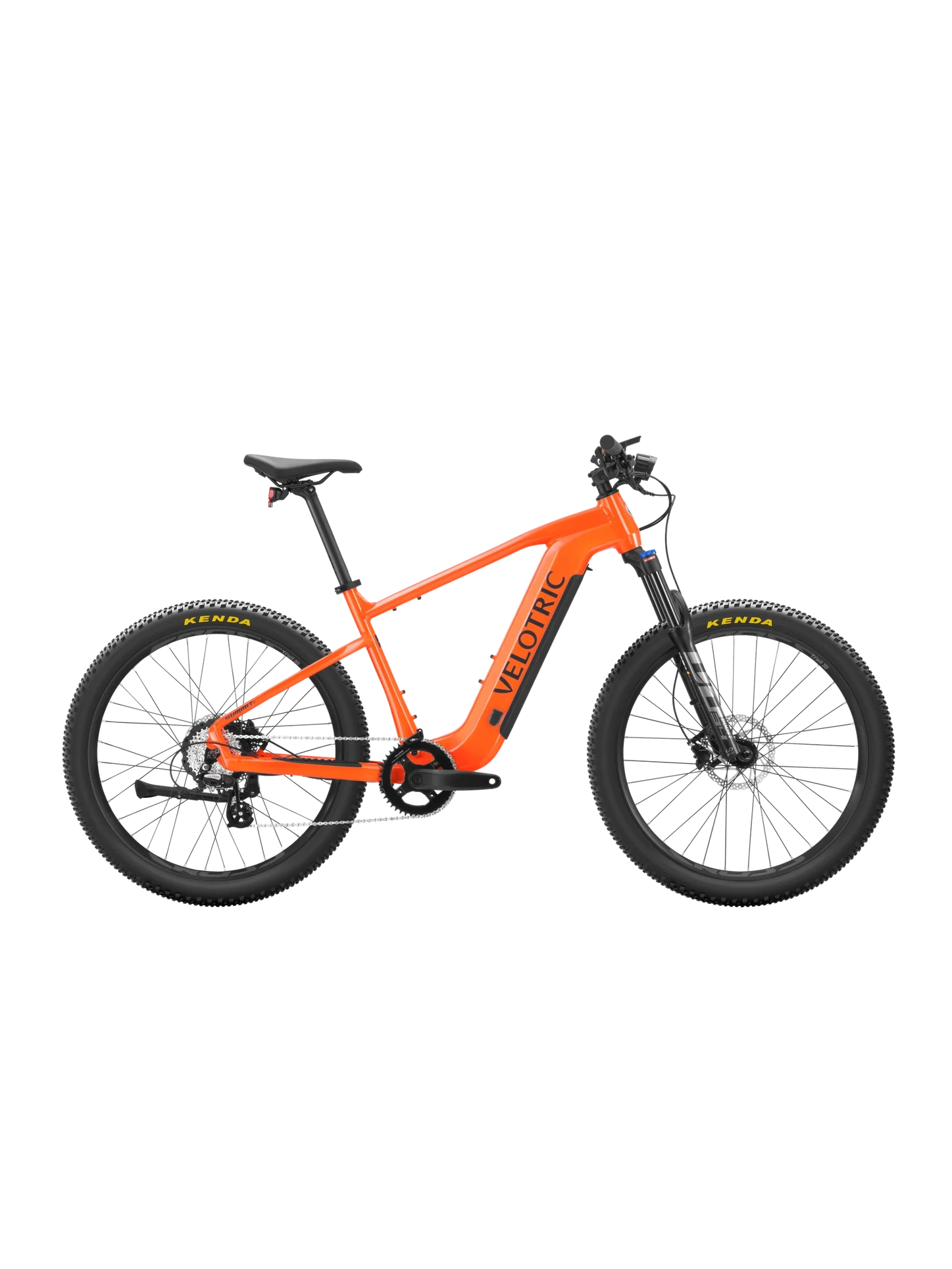

Velotric Summit 1 Ebike

Overview

The Velotric Summit 1 is a versatile hardtail electric mountain bike built to tackle a wide range of terrain—from paved roads and gravel to smooth fire roads and moderate off-road trails. It’s designed for riders who want powerful assistance up hills, confident handling on mixed surfaces, and comfort on longer rides. With a robust aluminum frame, dependable components, and modern e-bike tech, it’s a strong choice for adventure seekers and recreational riders alike.

Key Features

• Powerful Motor: 48 V rear hub motor with ~750 W nominal output and ~90 Nm torque for strong hill-climbing and responsive acceleration.

• Long-Range Battery: 48 V, ~705 Wh UL-2271 certified battery delivering up to ~70 miles per charge on pedal assist (range varies with terrain and assist level).

• Integrated Display & Connectivity: 2.8″ full-color TFT display with Bluetooth, adjustable angle, and phone USB charging.

• All-Weather Lights: Light-sensing front LED (≈130 lux) + rear brake-activated LED light.

• Class Versatility: Ride in Class 1, 2, or 3 configurations (pedal assist up to ~28 mph).

• Trail-Ready Tires: 27.5″ × 2.6″ Kenda puncture-resistant MTB tires for traction and control.

• Hydraulic Suspension: 120 mm travel front fork with lockout for smoothing bumps and improving ride confidence.

• Reliable Braking: Shimano hydraulic disc brakes with 180 mm rotors front and rear.

• Accessory Ready: Supports optional rear rack, fenders, and other accessories for commuting or touring.

Technical Specifications

Frame & Geometry

• Frame: Triple-butted aluminum alloy hardtail

• Sizes: Regular (5′1″-5′10″) and Large (5′8″-6′6″)

• Fork: Hydraulic suspension, 120 mm travel w/ lockout, 15 × 110 mm thru-axle

Electric System

• Motor: 48 V, 750 W (nominal), ~90 Nm torque

• Battery: 48 V, ~705.6 Wh, UL-2271 certified, IPX7

• Charger: 48 V, 3 A fast charger

• Sensor: Torque/Cadence

• Display: 2.8″ full color with Bluetooth

• USB: Type-A phone charging port

• Security: Apple Find My™ integration

• Assist: 3 modes × 5 levels

• Walk Mode: 2.9 mph

• Class: 1/2/3 (pedal assist up to ~28 mph)

• Throttle Range: ~60 miles; Pedal Assist Range: ~70 miles

Drivetrain

• Gearing: Shimano 8-speed

• Chain: KMC 8-speed

• Crankset: Aluminum alloy, 170 mm

• Chainring: BCD 104 narrow-wide

Brakes & Wheels

• Brakes: Shimano hydraulic disc

• Rotors: 180 mm front & rear

• Rims: Double-wall aluminum alloy

• Tires: Kenda 27.5″ × 2.6″ puncture-resistant

Cockpit & Comfort

• Handlebar: Aluminum alloy (760 mm / 780 mm)

• Grips: Lockable Velotric sport grips

• Stem: Aluminum (varies by size)

• Saddle: Velotric ergonomic seat

• Seatpost: 30.9 mm × 350 mm alloy

• Kickstand: Included rear mount

Weight & Load

• Bike Weight: ~62 lbs

• Max Load Capacity: ~440 lbs (rider + gear)
